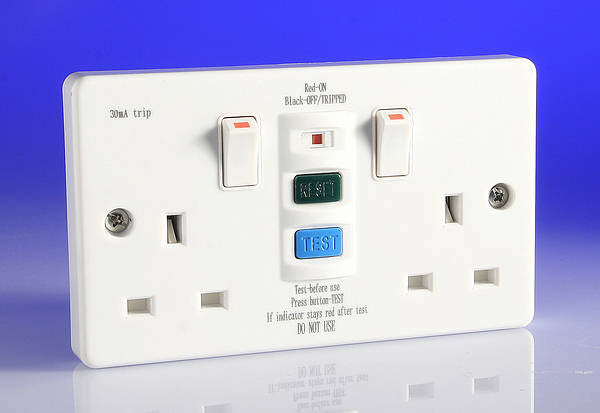

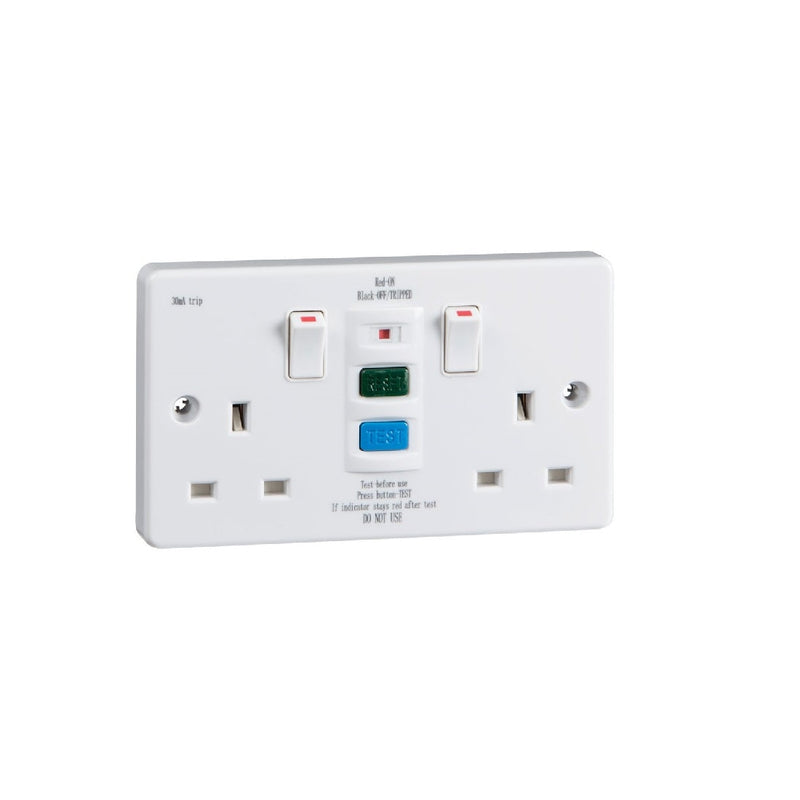

Knightsbridge RCD9000 13A 2G RCD Switched Socket – White
The Knightsbridge RCD9000 is a white two-gang switched socket with a 30 mA latching RCD. This is the legacy RCD9000 model, EAN 5055559193142; it should not be confused with the later CU9RCD replacement.
- Rating: 13A, 230 V, 50 Hz
- RCD tripping current: 30 mA
- Manufacturer-listed tripping speed: less than 40 ms
- Construction: polycarbonate, white
- Dimensions: 86 mm high × 146 mm wide; 14 mm projection
- Minimum back-box depth: 25 mm
- Terminal capacity: 2 × 1.0 mm² or 2 × 1.5 mm²
- Double pole: no, as stated in the original RCD9000 datasheet
- Protection: IP20, indoor use
Before use: follow the test procedure marked on the socket and the exact RCD9000 instructions. The label says not to use the socket if the indicator remains red after the test. “Latching” should not be treated as a guarantee against automatic reconnection after a supply interruption.
Document scope: the original manufacturer datasheet below is issue ABJUL17VOL1 from 2017. It records the legacy model's specifications; it is not fresh certification of current stock. An original downloadable installation manual and exact dimensional drawing remain unverified. Check the supplied unit, instructions and installation fit before fitting.
Manufacturer document
