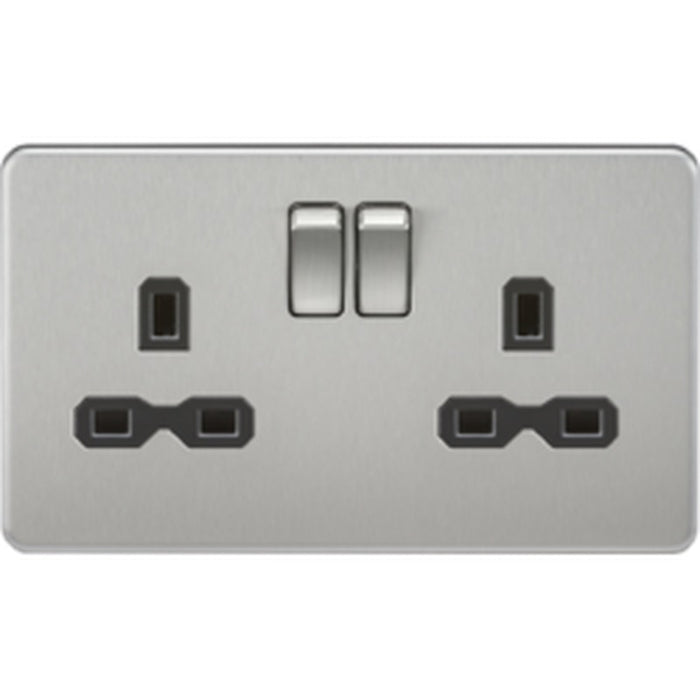

Knightsbridge SFR9000BC 13A Double Socket – Brushed Chrome/Black

The Knightsbridge SFR9000BC is a 13A, 2-gang switched socket with double-pole switches and twin earth terminals. It has a screwless brushed chrome front plate, matching metal rockers and black socket inserts.

Product details

• Manufacturer model: SFR9000BC
• Supply: 230V 50Hz
• Rated current: 13A
• Double-pole switching; twin earth terminals
• Plate size: 87.5mm high × 147.5mm wide
• Overall depth: 31.9mm; projection: 9.5mm; recessed depth: 22.4mm
• Minimum mounting box depth: 25mm
• Terminal capacity: 3 × 2.5mm² or 2 × 4.0mm²
• IP20; Class I, with earth connection required
• Manufacturer-stated standard: BS 1363-2

Manufacturer drawing

The drawing separates the 4.3mm faceplate thickness and 5.2mm rocker projection, giving the 9.5mm total projection stated in the datasheet. Check the drawing and back-box space before fitting.

Manufacturer documents

• SFR9000BC manufacturer datasheet (PDF)
• Manufacturer wiring-accessory installation instructions (PDF, DCAUG22_V3)

The manufacturer links this general wiring-accessory instruction sheet for SFR9000BC. Use its 13A switched-socket section and screwless fitting guidance; terminal positions may vary. Read the full instructions before installation and isolate the supply before work.
